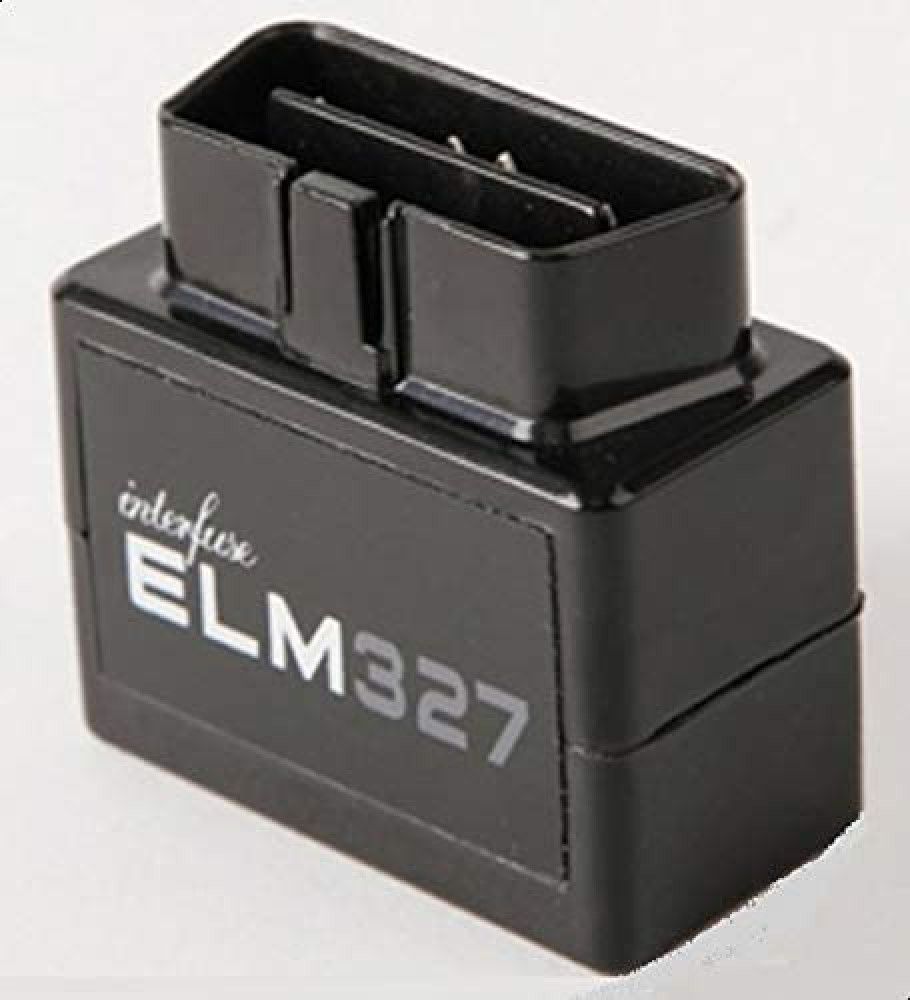

ELM Bluetooth OBDII/OBD 2 Car Errors Diagnostic Scanner V1.5 Model SE-04

• Item Type: ELM Super Mini 327 OBDII / OBD2 Car Diagnostic Scanner , Errors And Code Readers With Scan Tools
• Compatible Assistant Devices : Android , Windows
• Assistant Devices Connect Way : Bluetooth
• Hardware version : V1.5
• Language: English
• Voltage: 12V
• Color: Black
• Power: 2~5W
• Item Length: 4.5cm
• Item Width: 4.7cm
• Item Height: 2.4cm
• Item Weight: 26.8g
• Material Type: Plastic embedded with hardware
• Brand Name: ELM
• Model Number : SE-04
• COMPATIBLE CAR BRANDS : Suitable to all car brands, But not all car models – Thats depends on your car protocol.

COMPATIBLE PROTOCOLS.

• SAE J1850 PWM (41.6 kbaud)
• SAE J1850 VPW (10.4 kbaud)
• ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (fast init, 10.4 kbaud)
• ISO 15765-4 CAN (11 bit ID, 500 kbaud)
• ISO 15765-4 CAN (29 bit ID, 500 kbaud)
• ISO 15765-4 CAN (11 bit ID, 250 kbaud)
• ISO 15765-4 CAN (29 bit ID, 250 kbaud)

FUNCTION:

• Display current sensor data, including: Engine RPM , Calculated Load Value , Coolant Temperature , Fuel System Status , Vehicle Speed , Short Term Fuel Trim , Long Term Fuel Trim , Intake Manifold Pressure , Timing Advance , Intake Air Temperature , Air Flow Rate , Absolute Throttle Position , Oxygen sensor voltages / associated short term fuel trims , Fuel System status , Fuel Pressure etc…
• Clear trouble codes and turn off the MIL ( Check Engine – light)
• Compatible Software:  A Lot of software are Compatible you can search your mobile store with this word – OBDII .
• Read diagnostic trouble codes , both generic and manufacturer – specific , and display their meaning (over 3000 generic code definitions in the database).

IMPORTANT NOTES:

• how to test validity of product ?Package consists of 2 parts – hardware and cd which include software
• Hard ware test – if the OBDII connected with your assistant mobile or tablet ETC..that’s mean the device work in good condition , we cover and grantee this case
• Software test – if the OBDII connected with your assistant mobile or tablet ETC.. but the software can not access your car controller – that’s mean the device is not compatible with your car controller protocol – we don’t cover or grantee this case but we agree the refund as souq policy without covering the refund shipping price

PACKAGE INCLUDE :

• 1 x Black Super Mini Bluetooth ELM 327 V1.5
• 1 x CD driver
